Alerts Introduction

Alerts are first-class entities in Librato and can be accessed from the Alerts icon in your navigation bar.

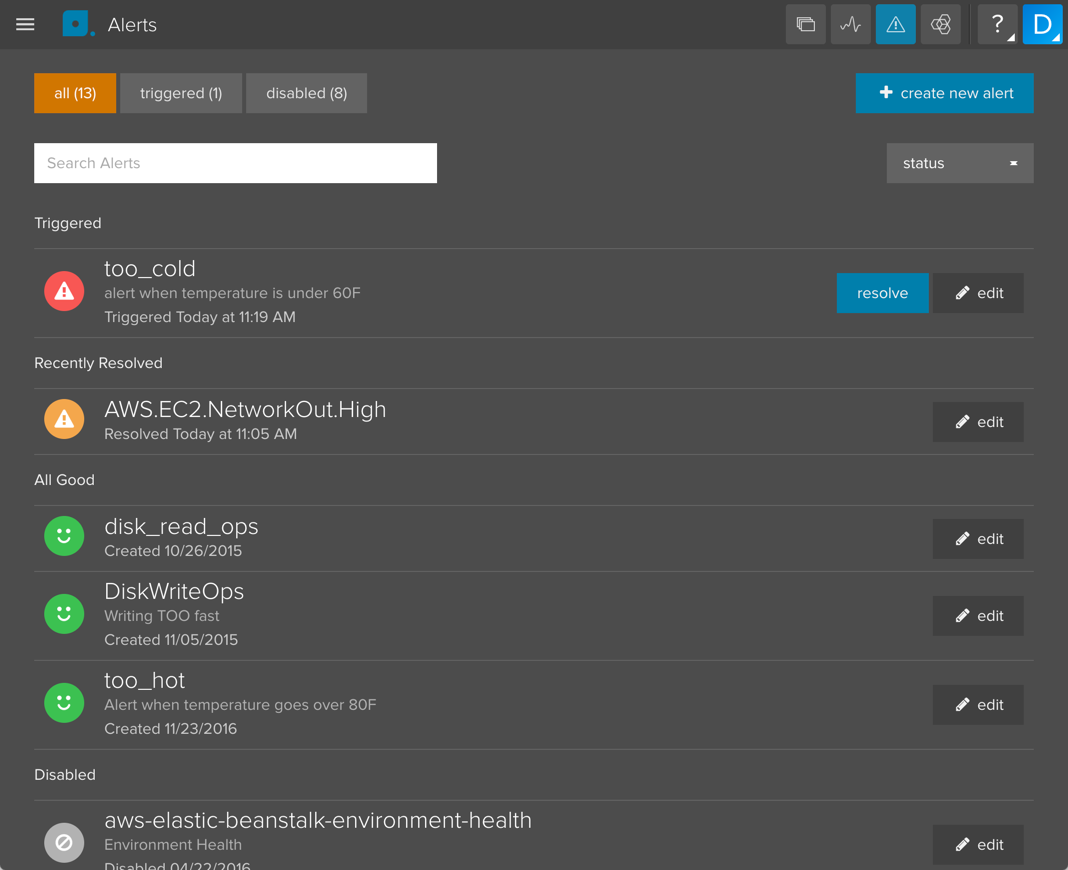

Alerts Central

Clicking on the Alerts icon in the menu bar takes you to the main view - a list of all enabled alerts and their current state. From here you can drill down into alerts, edit them, create new ones, sort, search by name… you get the picture - that’s why we call this Alerts Central.

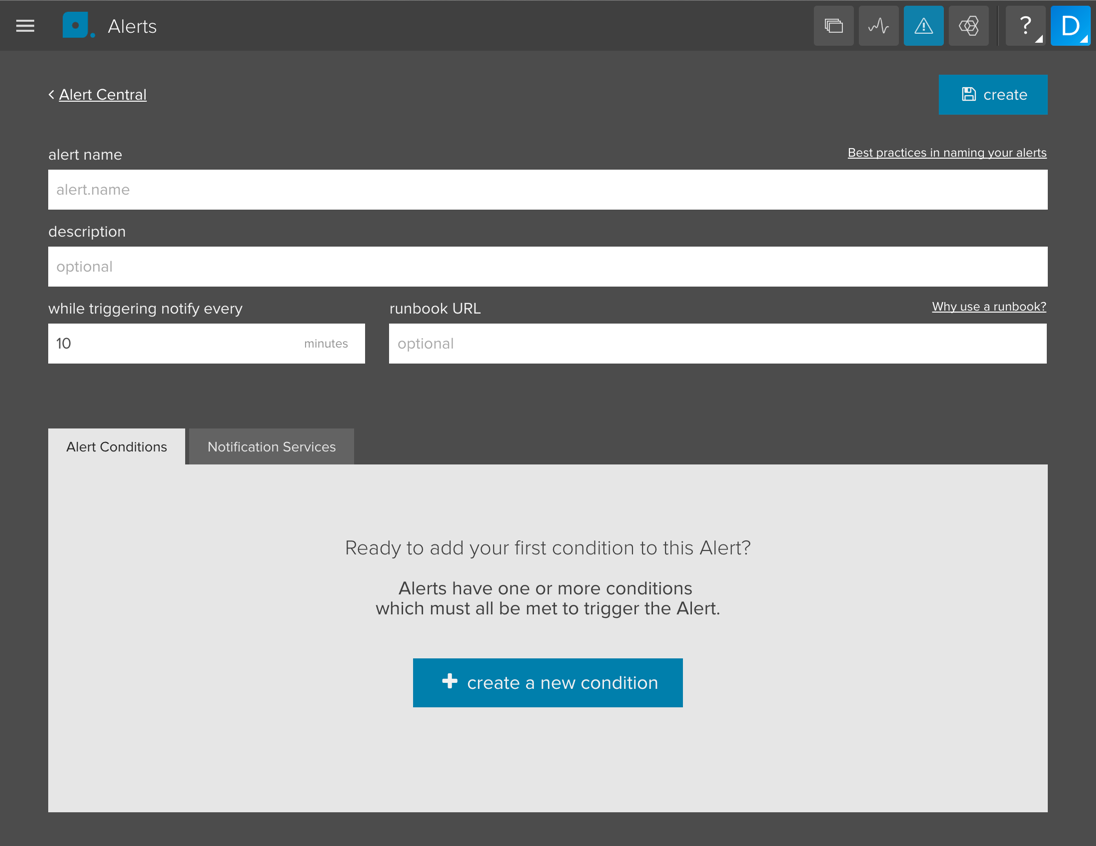

Create New Alert

Clicking on the “create new alert” button opens up a form with the following options:

  • alert name: Pick a name for your alert. Alert names now follow the same naming conventions as metrics. We suggest using names that describe the environment, application tier & alert function clearly such as production.frontend.response_rate.slow or staging.frontend.response_rate.slow.
  • description: This is an optional field - keep in mind that others may need to know what this alert is for so we recommend using it if you are setting up alerts for a team.
  • while triggering notify every: This re-notify (aka re-arm) timer lets you specify how long to wait before the alert can be fired again. NOTE: The re-notify timer is global, so if the timer is set to 60min and two sources trigger the alert consecutively, say within a few minutes, source 1 will trigger a notification whereas source 2 will not.
  • runbook URL: To ensure that alerts are actionable, add a url to a document (wiki page, gist, etc.) that describes what actions should be taken when the alert fires.

Alert Conditions is where you define what triggers the alert. Alerts can have one or more conditions which must all be met to trigger the Alert. We go into more depth about this further down in this article.

NOTE:  Alerts require more than one measurement before they will trigger.

Notification Services

Under the Notification Services tab you can link an alert to any number of notification services.

To tie an alert to a notification service just click on the service and select any of the destinations that are configured. You have to have at least one notification service selected before you can save the alert.

alerts-notification-services

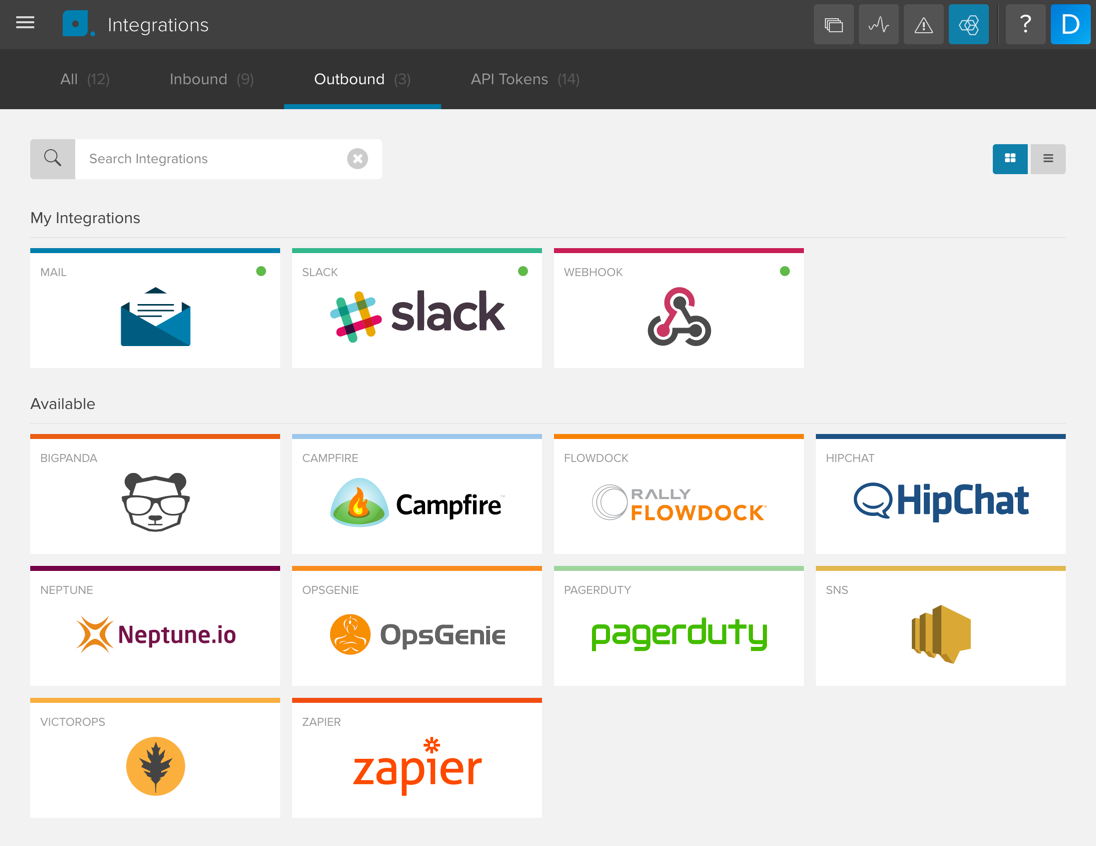

These are the services that Librato supports:

Defining Alert Conditions

Under the Alert Conditions tab you can create new conditions or edit existing ones. If you have several alert conditions, they ALL have to be met before the alert triggers. NOTE: Alert conditions are completely independent, so if condition 1 is triggered by source X and condition 0 is triggered by source Y, the alert will fire. To create alerts on multiple conditions that are source dependent please read the next section.

Click on [+ new condition] to bring up the alert condition form.

alert_conditions

The alert condition reads like a sentence. In the example above the condition would be:

Set an alert on AWS.EC2.CPUUtilization for sources that match the alerts-prod* pattern when the average of any given source exceeds a threshold of 40 for 10 minutes.

Let’s go over the condition options:

  • condition type: The type of threshold you are setting. You can trigger alerts when values exceed or fall below a threshold or you can use the “stops reporting” option to check a metric’s “heartbeat”.
    • goes above: Alert will fire if the incoming measurement value exceeds the threshold.
    • falls below: Alert will fire if the incoming measurement value falls below the threshold.
    • stops reporting: Alert will fire if any given source (that has reported previously) stops reporting, either immediately or for the specified duration. ** NOTE**: for this type of alert, it is a good idea to set the period on the metrics being checked.  Our alert system goes back N periods to determine the “last reported” value, and will assume the period is 60s if unspecified, which could result in false positives.
  • set alert on: Select a metric (or persisted composite metric)
  • from (source): Enter a source pattern, for example * for all sources or *prod* for all sources that include “prod . Each source that matches this pattern will be checked independently against the alert conditions. This means that alerts will fire when any of the sources violates the conditions.
  • when the: For gauges, choose the statistic to alert on: average, sum, minimum, maximum, count, or derivative. Please note that if you select “derivative” for a gauge, the derivative of the sums will be used. For counters, choose either “derivative” or “absolute value”. For the stops reporting feature, this field will not be shown.
  • crosses threshold: the value to be checked against (for each source) which determines whether the alert will be fired. There are two trigger options:
    • for a duration: Set the time window within which the trigger condition must be met for every measurement coming in. For example, if you only want to be notified if CPU is over 90 for at least 5 minutes, set the of field to 5 minutes. NOTE: The maximum value of this field is 60 minutes.
    • immediately: Fire the alert as soon as any measurement violates the condition.

Click on “add condition” to save the condition.

Once you have filled in all the fields, added at least one alert condition and tied it to at least one notification service, you can click on the “create” button to save the alert.

Source Dependent Alert Conditions

To create alerts on multiple conditions that are source dependent you have to use a composite metric. Read more about Alerts on composite metrics. For example, to create a “stops_reporting” alert that requires two metrics with the same source to stop reporting you can use this function:

map({source:"*"},
  sum([
    s("my.first.metric","&"),
    s("my.second.metric","&")])
)

This function uses sum() to create one data stream so that we can alert on it. The map() function breaks out the data stream by source. If one source stops reporting for both metrics, the alert will fire and the payload will include the source name.

Automated Alert Annotations

Every time an alert triggers a notification, we automatically create a matching annotation event in a special librato.alerts annotation stream. This enables you to overlay the history of any given alert (or set of alerts) on any instrument as depicted below:


The naming convention for a given alert will take the form: librato.alerts.#{alert_name}. For each notification that has fired, you will find an annotation in the annotation stream with its title set to the alert name, its description set to the list of conditions that triggered the notification, and a link back to the original alert definition. This feature will enable you to quickly and easily correlate your alerts against any combination of metrics.

Automatic Clearing of Triggered Alerts

With alert clearing you will receive a clear notification when the alert is no longer in a triggered state. For threshold and windowed alert conditions, any measurement that has returned to normal levels for all affected sources will clear the alert. For absent alert conditions, any measurement that reappears for all affected sources will clear the alert.

When an alert clears it sends a special clear notification. These are handled differently based on the integration. Email, Campfire, HipChat and Slack integrations will see an alert has cleared message. For PagerDuty customers, the open incident will be resolved. OpsGenie customers will see their open alert closed. Webhook integrations will contain a clear attribute in the payload as follows:

{
  "payload": {
    "alert": {
       "id": 6268092,
       "name": "a.test.name",
       "runbook_url": "",
       "version": 2
    },
    "account": "youremail@yourdomain.com",
    "trigger_time": 1457040045,
    "clear": "normal"
  }
}

When you view an alert inside the Librato UI you will now see one of two new states at the top of the page. Under normal conditions you will see the alert status highlighted in green to indicate everything is ok:


If the alert has actively triggered and has not cleared yet, it will include a resolve button that will manually clear the alert. This can be useful in cases where a source reports a measurement that violates a threshold, but then subsequently stops reporting.


If the conditions of the alert are still actively triggering, the alert will return to the triggered state on the next incoming measurement(s).

Auto-clearing when sources stop reporting on a threshold alert

For time-windowed threshold alerts, if all sources that were in violation subsequently stop reporting, the alert will be cleared after 1 threshold period.  Example: If the alert condition is “goes above 42 for 5 minutes” and “source1” violates the condition, the alert will trigger.

If source1 later stops reporting measurements, the alert will be cleared 5 minutes afterward.  Similarly, if “source1” and “source2” are both in violation, and source1 stops reporting but source2 continues to be in violation, the alert will remain in the triggered state.  If source2 then stops reporting, the alert will be cleared.

All triggered alerts are automatically cleared after a period of 10 days if they fail to report any new measurements.

Alerts on composite metrics

alert_persisted_composite

Under the Metrics tab you can use the Create Composite Metric button to create a composite metric with a persisted definition, which will be available globally like any other metric. They can also be used inside an alert.

Persisted composite metrics can have display names and will show up as a metric type “Composite” in your metrics list.

alert_composite_metric

Caveats:

When the alerting system polls for values on a composite metric, it currently is limited to the past 60 minutes of data.  Therefore, if you have an alert set on a derive() function, there must be 2 points within the last 60 minutes in order for your alert to trigger.

Saved composites must result in a single time-series to be alerted on, so..

[s("metric1", "*"), s("metric2", "*")]

..will not work.  A metric returning multiple sources will work, e.g.:

s("metric1", "*")
