How to change the colors on a metric

Metrics has a default color palette it assigns to series when rendering a chart. If you want to change the color of a series on a given chart, there are a couple of options available to you. All of them involve using our color picker to select a new color:


You can independently vary hue and brightness/saturation or just manually enter a hex code.

Configuring a Metric’s Default Color

The first level you can configure color is on a per-metric basis. You can find the color setting by clicking on the metric in the Metric view and then on the Set Default Attributes button.


When a color has been set on a metric, that color is used when rendering the metric as a line in any multi-metric chart. The color will also be used on the single metric chart if there is only one source for the metric … if there are multiple sources, the chart is rendered with randomly assigned colors instead of using the same color for each series.

Special Case: Single Metric/Multiple Sources

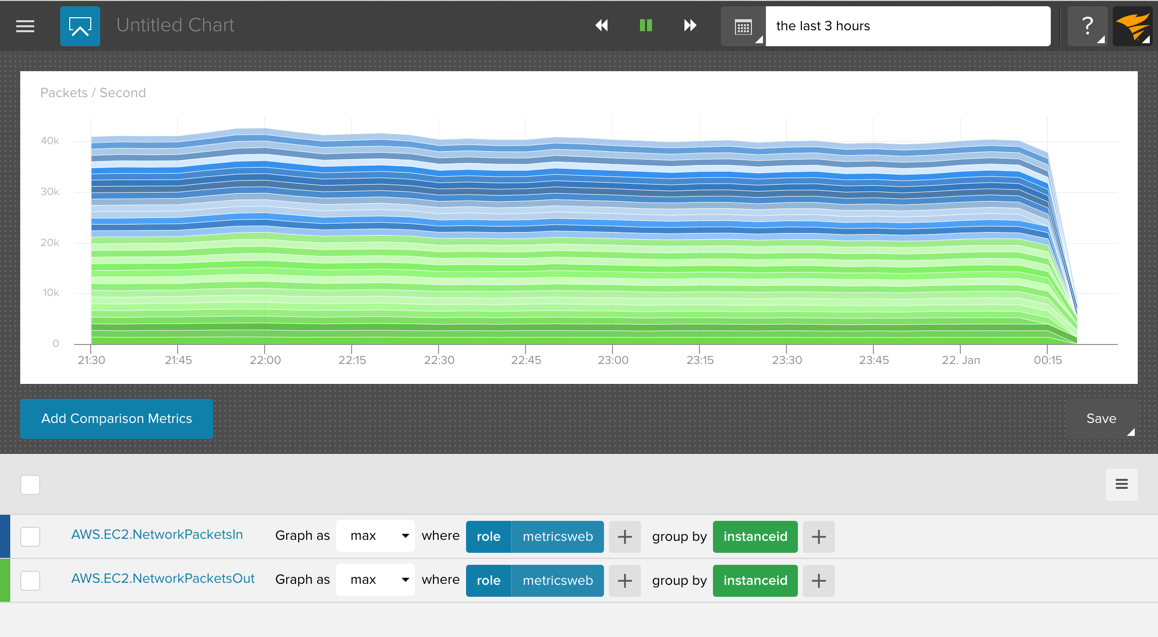

Normally when a wildcard source in a single metric corresponds to multiple series on the instrument chart (i.e. multiple sources and breakout is selected), said series are all assigned the same color but with a different hue to distinguish them as a group from series defined by the other metrics. You can configure this color as described above. If there are no other metrics however, there is no value gained from sharing the same color. In this situation we assign a random color to each series and the color picker is hidden. As soon as a second metric is added to the instrument, colors are managed as described above.
